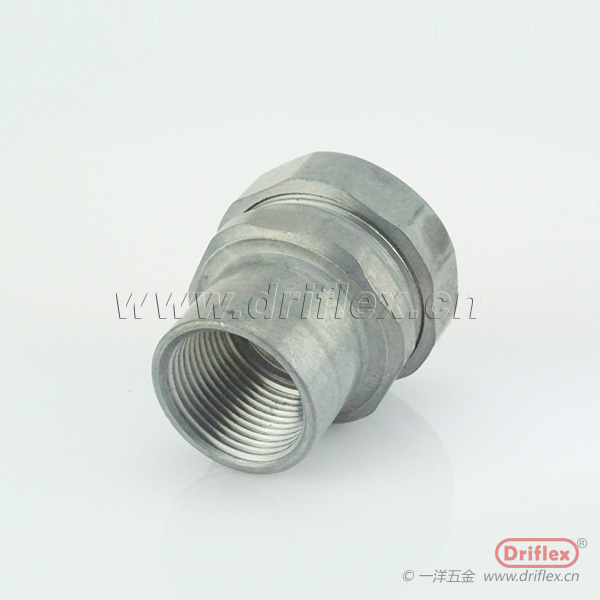

WUG接头 普利卡管**接头箱/管接头17.00-101.00MM

型号
可挠金属套管型号

可挠金属套管规格
L1
mm

L2
mm

L3
mm	ΦA
mm	ΦB
mm	ΦD
mm	管螺纹
″
接钢管规格

WUG-17	LV	17#	19.0	24.5	27	37.0	34.0	25.3	G1/2	15
WUG-24	24#	22.0	24.5	30	46.0	42.8	31.3	G3/4	20
WUG-30	30#	25.0	29.0	33	54.0	50.0	38.4	G1	25
WUG-38	38#	28.0	33.0	37	64.0	60.0	47.2	G11/4	32
WUG-50	50#	28.0	34.5	38	78.0	73.5	53.5	G11/2	40
WUG-63	63#	34.0	37.0	44	92.0	90.0	66.0	G2	50
WUG-76	76#	36.0	42.0	48	108.0	104.0	81.0	G21/2	70
WUG-83	83#	40.0	42.0	49	121.7	115.8	95.8	G3	80
WUG-101	101#	32.0	52.0	57	145.0	150.0	110.4	G4	100
